B46
DIN 208, CSN 221446
Rozwiertaki maszynowe wykańczaki z chwytem stożkowym Morse`a, przeznaczone do rozwiercenia otworów walcowych w stali i żeliwie. Rozwiertaki wykonane metodą frezowania ze stali szybkotnącej HSS. Zakres dostępnych średnic 6.00 ÷ 32.00 mm w tolerancjach H7, H8 i H11.
Zastosowanie

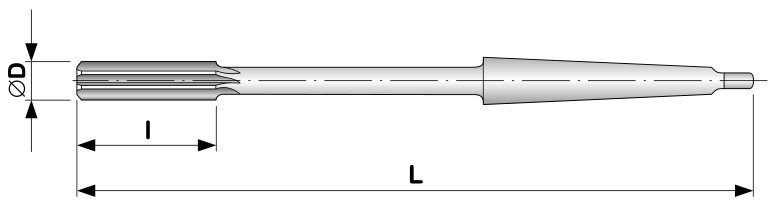

| Kod |
∅D mm |
L mm |
l mm |
MORSE |
 |
 |
|---|---|---|---|---|---|---|
| B46060XF000S | 6 | 138 | 26 | 1 | 6 | 0,063 |
| B46070XF000S | 7 | 150 | 31 | 1 | 6 | 0,068 |
| B46080XF000S | 8 | 156 | 33 | 1 | 6 | 0,076 |
| B46090XF000S | 9 | 162 | 36 | 1 | 6 | 0,085 |
| B46100XF000S | 10 | 168 | 38 | 1 | 6 | 0,095 |
| B46110XF000S | 11 | 175 | 41 | 1 | 6 | 0,107 |
| B46120XF000S | 12 | 182 | 44 | 1 | 8 | 0,125 |
| B46130XF000S | 13 | 182 | 44 | 1 | 8 | 0,133 |
| B46140XF000S | 14 | 189 | 47 | 1 | 8 | 0,145 |
| B46150XF000S | 15 | 204 | 50 | 2 | 8 | 0,265 |
| B46160XF000S | 16 | 210 | 52 | 2 | 8 | 0,295 |
| B46170XF000S | 17 | 214 | 54 | 2 | 8 | 0,325 |
| B46180XF000S | 18 | 219 | 56 | 2 | 8 | 0,350 |
| B46190XF000S | 19 | 223 | 58 | 2 | 8 | 0,370 |
| B46200XF000S | 20 | 228 | 60 | 2 | 8 | 0,385 |
| B46210XF000S | 21 | 232 | 62 | 2 | 8 | 0,415 |
| B46220XF000S | 22 | 237 | 64 | 2 | 8 | 0,435 |
| B46230XF000S | 23 | 241 | 66 | 2 | 8 | 0,455 |
| B46240XF000S | 24 | 268 | 68 | 3 | 8 | 0,730 |
| B46250XF000S | 25 | 268 | 68 | 3 | 8 | 0,790 |
| B46260XF000S | 26 | 273 | 70 | 3 | 10 | 0,830 |
| B46270XF000S | 27 | 277 | 71 | 3 | 10 | 0,850 |
| B46280XF000S | 28 | 277 | 71 | 3 | 10 | 0,880 |
| B46290XF000S | 29 | 281 | 73 | 3 | 10 | 0,920 |
| B46300XF000S | 30 | 281 | 73 | 3 | 10 | 0,940 |
| B46310XF000S | 31 | 285 | 75 | 3 | 10 | 0,965 |
| B46320XF000S | 32 | 317 | 77 | 4 | 10 | 1,565 |
Uwagi:
X = Tolerancja rozwiertaka (7 = H7; 8 = H8; 1 = H11)
