B80
DIN 344, CSN 221480
Rozwiertaki maszynowe zgrubne długie z chwytem cylindrycznym, przeznaczone do wstępnego rozwiercenia otworów walcowych (przygotowania ich pod rozwiercenie dokładne), przeznaczone do obróbki stali i żeliwa. Rozwiertaki wykonane metodą frezowania ze stali szybkotnącej HSS. Zakres dostępnych średnic 4.80÷ 16.00 mm w tolerancjach h8 i H11.
Zastosowanie

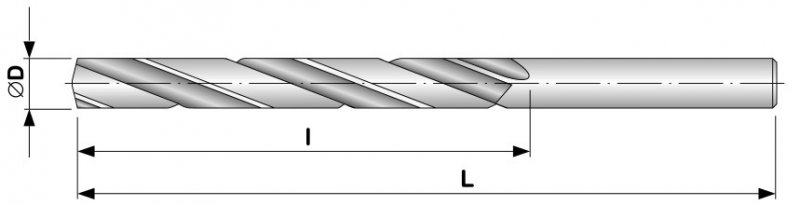

| Kod |
∅D mm |
L mm |
l mm |
 |
 |
|---|---|---|---|---|---|
| B800480F000S | 4,8 | 86 | 52 | 3 | 0,011 |
| B800500F000S | 5 | 86 | 52 | 3 | 0,013 |
| B800501F000S | 5 H11 | 86 | 52 | 3 | 0,013 |
| B800580F000S | 5,80 | 93 | 57 | 3 | 0,017 |
| B800600F000S | 6 | 93 | 57 | 3 | 0,020 |
| B800601F000S | 6 H11 | 93 | 57 | 3 | 0,020 |
| B800680F000S | 6,80 | 109 | 69 | 3 | 0,022 |
| B800700F000S | 7 | 109 | 69 | 3 | 0,026 |
| B800701F000S | 7 H11 | 109 | 69 | 3 | 0,026 |
| B800780F000S | 7,80 | 117 | 75 | 3 | 0,032 |
| B800800F000S | 8 | 117 | 75 | 3 | 0,037 |
| B800801F000S | 8 H11 | 117 | 75 | 3 | 0,037 |
| B800880F000S | 8,80 | 125 | 81 | 3 | 0,050 |
| B800900F000S | 9 | 125 | 81 | 3 | 0,056 |
| B800901F000S | 9 H11 | 125 | 81 | 3 | 0,056 |
| B800980F000S | 9,80 | 133 | 87 | 3 | 0,066 |
| B801000F000S | 10 | 133 | 87 | 3 | 0,071 |
| B801001F000S | 10 H11 | 133 | 87 | 3 | 0,071 |
| B801075F000S | 10,75 | 142 | 94 | 3 | 0,079 |
| B801100F000S | 11 | 142 | 94 | 3 | 0,084 |
| B801101F000S | 11 H11 | 142 | 94 | 3 | 0,084 |
| B801175F000S | 11,75 | 142 | 94 | 3 | 0,095 |
| B801200F000S | 12 | 151 | 101 | 3 | 0,104 |
| B801201F000S | 12 H11 | 151 | 101 | 3 | 0,104 |
| B801275F000S | 12,75 | 151 | 101 | 3 | 0,115 |
| B801300F000S | 13 | 151 | 101 | 3 | 0,120 |
| B801301F000S | 13 H11 | 151 | 101 | 3 | 0,120 |
| B801375F000S | 13,75 | 160 | 108 | 3 | 0,139 |
| B801400F000S | 14 | 160 | 108 | 3 | 0,144 |
| B801401F000S | 14 H11 | 160 | 108 | 3 | 0,144 |
| B801475F000S | 14,75 | 169 | 114 | 3 | 0,169 |
| B801500F000S | 15 | 169 | 114 | 3 | 0,174 |
| B801501F000S | 15 H11 | 169 | 114 | 3 | 0,174 |
| B801575F000S | 15,75 | 178 | 120 | 3 | 0,199 |
| B801600F000S | 16 | 178 | 120 | 3 | 0,204 |
| B801601F000S | 16 H11 | 178 | 120 | 3 | 0,204 |
