C04
DIN 373, CSN 221604
Pogłębiacze walcowo-czołowe z chwytem cylindrycznym ogólnego stosowania przeznaczone do obróbki stali, stali nierdzewnych i żeliwa. Pogłębiacze wykonane metodą frezowania ze stali szybkotnącej HSS. Zakres dostępnych średnic 4.30 ÷ 20.00 mm pod gwint M2 - M12.
Zastosowanie

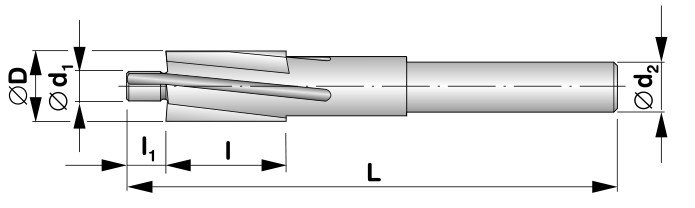

| Kod |
∅Dz9 mm |
∅d1e8 mm |
∅d2h9 mm |
L mm |
l mm |
l1 mm |
Pod gwint |
 |
 |
|---|---|---|---|---|---|---|---|---|---|
| C040016F000S | 4,3 | *1,6 | 4,3 | 56 | 10 | 3 | M2 | 4 | 0,005 |
| C040022F000S | 4,3 | 2,2 | 4,3 | 56 | 10 | 3 | M2 | 4 | 0,005 |
| C041020F000S | 5,0 | *2,05 | 5,0 | 56 | 10 | 3 | M2,5 | 4 | 0,006 |
| C041027F000S | 5,0 | 2,7 | 5,0 | 56 | 10 | 3 | M2,5 | 4 | 0,006 |
| C042025F000S | 6,0 | *2,5 | 5,0 | 71 | 14 | 4 | M3 | 4 | 0,010 |
| C042032F000S | 6,0 | 3,2 | 5,0 | 71 | 14 | 4 | M3 | 4 | 0,010 |
| C043029F000S | 6,5 | *2,9 | 5,0 | 71 | 14 | 4 | M3,5 | 4 | 0,011 |
| C043037F000S | 6,5 | 3,7 | 5,0 | 71 | 14 | 4 | M3,5 | 4 | 0,011 |
| C044033F000S | 8,0 | *3,3 | 5,0 | 71 | 14 | 4 | M4 | 4 | 0,012 |
| C044043F000S | 8,0 | 4,3 | 5,0 | 71 | 14 | 4 | M4 | 4 | 0,012 |
| C045042F000S | 10,0 | *4,2 | 8,0 | 80 | 18 | 6 | M5 | 4 | 0,028 |
| C045053F000S | 10,0 | 5,3 | 8,0 | 80 | 18 | 6 | M5 | 4 | 0,028 |
| C046050F000S | 11,0 | *5,0 | 8,0 | 80 | 18 | 6 | M6 | 4 | 0,034 |
| C046064F000S | 11,0 | 6,4 | 8,0 | 80 | 18 | 6 | M6 | 4 | 0,034 |
| C047068F000S | 15,0 | *6,8 | 12,5 | 100 | 22 | 8 | M8 | 4 | 0,086 |
| C047084F000S | 15,0 | 8,4 | 12,5 | 100 | 22 | 8 | M8 | 4 | 0,086 |
| C048085F000S | 18,0 | *8,5 | 12,5 | 100 | 22 | 10 | M10 | 4 | 0,114 |
| C048105F000S | 18,0 | 10,5 | 12,5 | 100 | 22 | 10 | M10 | 4 | 0,114 |
| C049102F000S | 20,0 | *10,2 | 12,5 | 100 | 22 | 12 | M12 | 4 | 0,122 |
| C049130F000S | 20,0 | 13,0 | 12,5 | 100 | 22 | 12 | M12 | 4 | 0,122 |
Uwagi:
wykonanie oznaczone * - wymiary pilotów prowadzących dostosowane do otworów pod gwint
