C08
DIN 1868, CSN 221608

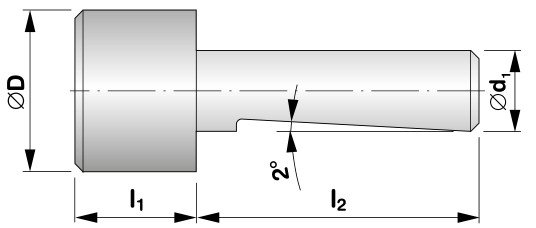

Piloty prowadzące do pogłębiaczy wykonanych wg. DIN 375 (CSN 221608). Piloty wykonane ze stali szybkotnącej HSS. Zakres dostępnych średnic 4.30 ÷ 37.00 mm do pogłębiaczy o zakresie 13.00 ÷ 60.00 mm.
| Kod |
∅De8 mm |
∅d1 mm |
l1h9 mm |
l2 mm |
Do pogłębiaczy | Pod gwint |
 |
|---|---|---|---|---|---|---|---|
| C080431F000S | 4,3 | 4 | 5 | 20 | 13,0 | 0,003 | |
| C080451F000S | 4,5 | 4 | 5 | 20 | 13,0 | 0,003 | |
| C080531F000S | 5,3 | 4 | 5 | 20 | 15,0 | 0,003 | |
| C080551F000S | 5,5 | 4 | 5 | 20 | 15,0 | M8 | 0,004 |
| C080642F000S | 6,4 | 5 | 6 | 23 | 18,0 | 0,006 | |
| C080662F000S | 6,6 | 5 | 6 | 23 | 18,0 | 0,005 | |
| C080681F000S | *6,8 | 4 | 6 | 20 | 15,0 | M8 | 0,005 |
| C080742F000S | 7,4 | 5 | 6 | 23 | 20,0 | 0,007 | |
| C080762F000S | 7,6 | 5 | 6 | 23 | 20,0 | 0,007 | |
| C080841F000S | 8,4 | 4 | 7 | 20 | 15,0 | 0,008 | |
| C080843F000S | 8,4 | 6 | 7 | 28 | 24,0 | 0,009 | |
| C080852F000S | *8,5 | 5 | 7 | 23 | 18,0 | M10 | 0,008 |
| C080903F000S | 9,0 | 6 | 7 | 28 | 24,0 | 0,010 | |
| C081022F000S | *10,2 | 5 | 8 | 23 | 20,0 | M12 | 0,008 |
| C081052F000S | *10,5 | 5 | 8 | 23 | 18,0 | M10 | 0,008 |
| C081054F000S | 10,5 | 8 | 8 | 32 | 28,0 | 0,010 | |
| C081104F000S | 11,0 | 8 | 8 | 32 | 28,0 | 0,016 | |
| C081203F000S | *12,0 | 6 | 8 | 28 | 24,0 | M14 | 0,014 |
| C081302F000S | 13,0 | 5 | 10 | 23 | 20,0 | M12 | 0,012 |
| C081305F000S | 13,0 | 10 | 10 | 40 | 34,0 | 0,032 | |
| C081404F000S | *14,0 | 8 | 10 | 32 | 26,0 | M16 | 0,020 |
| C081405F000S | 14,0 | 10 | 10 | 40 | 34,0 | 0,032 | |
| C081503F000S | 15,0 | 6 | 10 | 28 | 24,0 | M14 | 0,017 |
| C081505F000S | 15,0 | 10 | 10 | 40 | 36,0 | 0,035 | |
| C081554F000S | *15,5 | 8 | 10 | 32 | 30,0 | M18 | 0,025 |
| C081605F000S | 16,0 | 10 | 10 | 40 | 36,0 | 0,038 | |
| C081704F000S | 17,0 | 8 | 12 | 32 | 26,0 | M16 | 0,035 |
| C081705F000S | 17,0 | 10 | 12 | 40 | 40,0 | 0,040 | |
| C081755F000S | *17,5 | 10 | 12 | 40 | 34,0 | M20 | 0,040 |
| C081805F000S | 18,0 | 10 | 12 | 40 | 40,0 | 0,045 | |
| C081904F000S | 19,0 | 8 | 12 | 32 | 30,0 | M18 | 0,038 |
| C081906F000S | 19,0 | 12 | 12 | 50 | 43,0 | 0,070 | |
| C082006F000S | 20,0 | 12 | 12 | 50 | 43,0 | 0,070 | |
| C082105F000S | 21,0 | 10 | 15 | 40 | 34,0 | M20 | 0,060 |
| C082105F000S | *21,0 | 10 | 15 | 40 | 40,0 | M24 | 0,060 |
| C082106F000S | 21,0 | 12 | 15 | 50 | 48,0 | 0,075 | |
| C082206F000S | 22,0 | 12 | 15 | 50 | 48,0 | 0,085 | |
| C082307F000S | 23,0 | 16 | 15 | 60 | 53,0 | 0,120 | |
| C082407F000S | 24,0 | 16 | 15 | 60 | 53,0 | 0,130 | |
| C082505F000S | 25,0 | 10 | 15 | 40 | 40,0 | M24 | 0,080 |
| C082507F000S | 25,0 | 16 | 15 | 60 | 57,0 | 0,150 | |
| C082607F000S | 26,0 | 16 | 18 | 60 | 57,0 | 0,160 | |
| C082656F000S | *26,5 | 12 | 18 | 50 | 48,0 | M30 | 0,120 |
| C082807F000S | 28,0 | 16 | 18 | 60 | 60,0 | 0,190 | |
| C083007F000S | 30,0 | 16 | 18 | 60 | 60,0 | 0,200 | |
| C083106F000S | 31,0 | 12 | 18 | 50 | 48,0 | M30 | 0,140 |
| C083307F000S | *33,0 | 16 | 22 | 60 | 57,0 | M36x3 | 0,230 |
| C083707F000S | 37,0 | 16 | 22 | 60 | 57,0 | M36x3 | 0,280 |
Uwagi:
Wykonanie oznaczone * - wymiary pilotów dostosowane do otworów pod gwint. Pozostałe piloty przeznaczone są do pogłębiaczy od obróbki rzadziej spotykanych wymiarów pogłębień.
