C25
DIN 335, ZVSE 221625
Pogłębiacze trzyostrzowe z chwytem walcowym 90° wg. DIN335-C ogólnego stosowania przeznaczone do obróbki stali, stali nierdzewnych i żeliwa. Pogłębiacze wykonane metodą szlifowania (V) i frezowania (F) ze stali szybkotnącej HSS. Zakres dostępnych średnic 4.30 ÷ 31.00 mm.
Zastosowanie

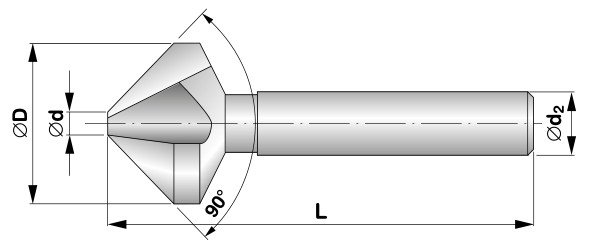

| Kod |
∅D mm |
∅d2 mm |
∅d mm |
L mm |
 |
 |
|---|---|---|---|---|---|---|
| C259043V000S | 4,3 | 4 | 1,3 | 40 | 3 | 0,004 |
| C259049V000S | 4,9 | 4 | 1,5 | 40 | 3 | 0,004 |
| C259050V000S | 5,0 | 4 | 1,5 | 40 | 3 | 0,004 |
| C259053V000S | 5,3 | 4 | 1,5 | 40 | 3 | 0,005 |
| C259057V000S | 5,7 | 5 | 1,5 | 45 | 3 | 0,006 |
| C259058V000S | 5,8 | 5 | 1,5 | 45 | 3 | 0,007 |
| C259060V000S | 6,0 | 5 | 1,5 | 45 | 3 | 0,007 |
| C259063V000S | 6,3 | 5 | 1,5 | 45 | 3 | 0,007 |
| C259070V000S | 7,0 | 6 | 1,8 | 50 | 3 | 0,007 |
| C259073V000S | 7,3 | 6 | 1,8 | 50 | 3 | 0,007 |
| C259078V000S | 7,8 | 6 | 2,0 | 50 | 3 | 0,011 |
| C259080V000S | 8,0 | 6 | 2,0 | 50 | 3 | 0,011 |
| C259083V000S | 8,3 | 6 | 2,0 | 50 | 3 | 0,011 |
| C259094V000S | 9,4 | 6 | 2,2 | 50 | 3 | 0,012 |
| C259095V000S | 9,5 | 6 | 2,2 | 50 | 3 | 0,012 |
| C259100V000S | 10,0 | 6 | 2,5 | 50 | 3 | 0,012 |
| C259104V000S | 10,4 | 6 | 2,5 | 50 | 3 | 0,012 |
| C259114F000S | 11,4 | 8 | 2,8 | 56 | 3 | 0,022 |
| C259115F000S | 11,5 | 8 | 2,8 | 56 | 3 | 0,022 |
| C259124F000S | 12,4 | 8 | 2,8 | 56 | 3 | 0,028 |
| C259134F000S | 13,4 | 8 | 2,9 | 56 | 3 | 0,024 |
| C259150F000S | 15,0 | 10 | 3,2 | 60 | 3 | 0,038 |
| C259154F000S | 15,4 | 10 | 3,2 | 60 | 3 | 0,038 |
| C259165F000S | 16,5 | 10 | 3,2 | 60 | 3 | 0,038 |
| C259185F000S | 18,5 | 10 | 3,5 | 63 | 3 | 0,044 |
| C259190F000S | 19,0 | 10 | 3,5 | 63 | 3 | 0,044 |
| C259205F000S | 20,5 | 10 | 3,5 | 63 | 3 | 0,046 |
| C259225F000S | 22,5 | 10 | 3,8 | 67 | 3 | 0,055 |
| C259230F000S | 23,0 | 10 | 3,8 | 67 | 3 | 0,055 |
| C259250F000S | 25,0 | 10 | 3,8 | 67 | 3 | 0,060 |
| C259260F000S | 26,0 | 10 | 3,8 | 67 | 3 | 0,070 |
| C259280F000S | 28,0 | 12 | 4,0 | 71 | 3 | 0,100 |
| C259300F000S | 30,0 | 12 | 4,2 | 71 | 3 | 0,100 |
| C259310F000S | 31,0 | 12 | 4,2 | 71 | 3 | 0,100 |
