C28
DIN 334, DIN 335, DIN 347, CSN 221628
Pogłębiacze wieloostrzowe z chwytem Morse’a 60° wg. DIN334, 90° wg. DIN335, 120° wg. DIN347 ogólnego stosowania przeznaczone do obróbki stali, stali nierdzewnych i żeliwa. Pogłębiacze wykonane metodą frezowania ze stali szybkotnącej HSS. Zakres dostępnych średnic 16.00 ÷ 63.00 mm.
Zastosowanie

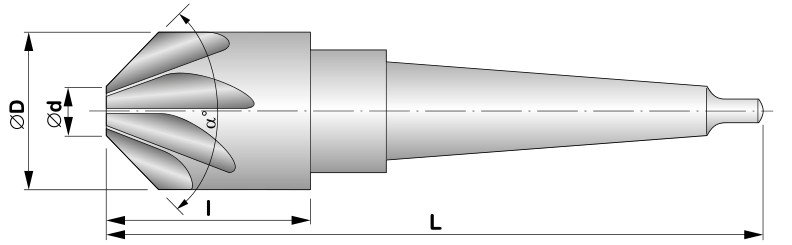

| Kod |
∅D mm |
α° |
∅d mm |
L mm |
l mm |
MORSE |
 |
 |
|---|---|---|---|---|---|---|---|---|
| C280616F000S | 16,0 | 60 | 3,2 | 97 | 24 | 1 | 7 | 0,076 |
| C280625F000S | 25,0 | 60 | 7,0 | 125 | 33 | 2 | 7 | 0,250 |
| C280640F000S | 40,0 | 60 | 12,5 | 160 | 45 | 3 | 9 | 0,700 |
| C280663F000S | 63,0 | 60 | 20,0 | 200 | 58 | 4 | 9 | 1,530 |
| C280916F000S | 16,0 | 90 | 3,2 | 93 | 20 | 1 | 7 | 0,080 |
| C280925F000S | 25,0 | 90 | 7,0 | 121 | 29 | 2 | 7 | 0,250 |
| C280931F000S | 31,5 | 90 | 9,0 | 124 | 32 | 2 | 7 | 0,325 |
| C280940F000S | 40,0 | 90 | 12,5 | 150 | 35 | 3 | 9 | 0,660 |
| C280950F000S | 50,0 | 90 | 16,0 | 153 | 38 | 3 | 9 | 0,750 |
| C280963F000S | 63,0 | 90 | 20,0 | 185 | 43 | 4 | 9 | 1,150 |
| C281231F000S | 31,5 | 120 | 9,0 | 124 | 32 | 2 | 7 | 0,315 |
| C281263F000S | 63,0 | 120 | 20,0 | 185 | 43 | 4 | 9 | 1,150 |
