D40
DIN 2185, CSN 241240

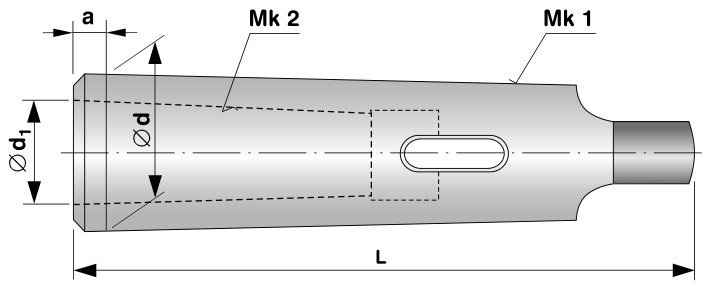

Tuleje redukcyjne ze stożkiem Morse'a wykonane ze stali nawęglanej CHS. Zakres dostępnych redukcji MK1/0 ÷ MK6/5.
| Kod | Mk1 | Mk2 |
∅d mm |
∅d1 mm |
L mm |
a mm |
 |
|---|---|---|---|---|---|---|---|
| D400100F000S | 1 | 0 | 12,065 | 9,045 | 85 | 23 | 0,05 |
| D400201F000S | 2 | 1 | 17,780 | 12,065 | 92 | 17 | 0,10 |
| D400301F000S | 3 | 1 | 23,825 | 12,065 | 99 | 5 | 0,20 |
| D400302F000S | 3 | 2 | 23,825 | 17,780 | 112 | 18 | 0,20 |
| D400401F000S | 4 | 1 | 31,276 | 12,065 | 124 | 6,5 | 0,60 |
| D400402F000S | 4 | 2 | 31,276 | 17,780 | 124 | 6,5 | 0,50 |
| D400403F000S | 4 | 3 | 44,399 | 23,825 | 140 | 22,5 | 0,40 |
| D400501F000S | 5 | 1 | 44,399 | 12,065 | 156 | 6,5 | 1,60 |
| D400502F000S | 5 | 2 | 44,399 | 17,780 | 156 | 6,5 | 1,40 |
| D400503F000S | 5 | 3 | 44,399 | 23,825 | 156 | 6,5 | 1,20 |
| D400504F000S | 5 | 4 | 63,348 | 31,276 | 171 | 21,5 | 1,00 |
| D400601F000S | 6 | 1 | 63,348 | 12,065 | 218 | 8 | 4,10 |
| D400602F000S | 6 | 2 | 63,348 | 17,780 | 218 | 8 | 3,90 |
| D400603F000S | 6 | 3 | 63,348 | 23,825 | 218 | 8 | 3,77 |
| D400604F000S | 6 | 4 | 63,348 | 31,276 | 218 | 8 | 3,40 |
| D400605F000S | 6 | 5 | 63,348 | 44,399 | 218 | 8 | 2,50 |
