F32F0
ZVSE 221332, TP 330
Wiertła z chwytem Morse`a z ostrzem z węglika spiekanego w gat. G10, przeznaczone do obróbki stali ulepszonych cieplnie do twardości 40 HRC. Wiertła wykonane wg. DIN8041. Zakres dostępnych średnic 10.0 ÷ 40.00 mm.
Zastosowanie

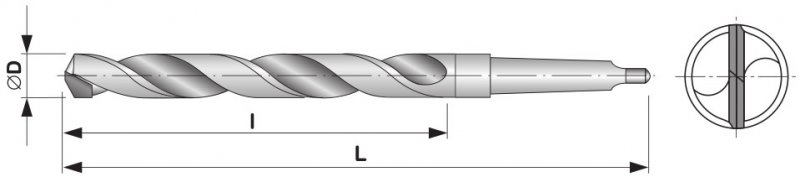

| Kod |
∅D mm |
∅L mm |
l mm |
MORSE |
 |
|---|---|---|---|---|---|
| F321000F000S | 10 | 140 | 65 | 1 | 0,085 |
| F321050F000S | 10,5 | 145 | 70 | 1 | 0,090 |
| F321100F000S | 11 | 145 | 70 | 1 | 0,092 |
| F321150F000S | 11,5 | 150 | 75 | 1 | 0,095 |
| F321200F000S | 12 | 150 | 75 | 1 | 0,095 |
| F321300F000S | 13 | 170 | 80 | 2 | 0,210 |
| F321400F000S | 14 | 175 | 92 | 2 | 0,220 |
| F321500F000S | 15 | 180 | 90 | 2 | 0,234 |
| F321600F000S | 16 | 185 | 95 | 2 | 0,237 |
| F321700F000S | 17 | 190 | 100 | 2 | 0,248 |
| F321800F000S | 18 | 195 | 105 | 2 | 0,252 |
| F321900F000S | 19 | 215 | 105 | 3 | 0,453 |
| F322000F000S | 20 | 220 | 110 | 3 | 0,472 |
| F322100F000S | 21 | 225 | 115 | 3 | 0,483 |
| F322200F000S | 22 | 230 | 120 | 3 | 0,498 |
| F322300F000S | 23 | 255 | 155 | 3 | 0,502 |
| F322400F000S | 24 | 255 | 155 | 3 | 0,531 |
| F322500F000S | 25 | 285 | 160 | 3 | 0,558 |
| F322600F000S | 26 | 285 | 160 | 3 | 0,598 |
| F322700F000S | 27 | 295 | 175 | 4 | 1,025 |
| F322800F000S | 28 | 280 | 145 | 4 | 1,040 |
| F322900F000S | 29 | 285 | 150 | 4 | 1,062 |
| F323000F000S | 30 | 320 | 190 | 4 | 1,083 |
| F323100F000S | 31 | 320 | 200 | 4 | 1,164 |
| F323200F000S | 32 | 300 | 160 | 4 | 1,186 |
| F323300F000S | 33 | 360 | 215 | 4 | 1,216 |
| F323400F000S | 34 | 370 | 220 | 4 | 1,304 |
| F323500F000S | 35 | 370 | 220 | 4 | 1,544 |
| F323600F000S | 36 | 320 | 180 | 4 | 1,586 |
| F323700F000S | 37 | 330 | 180 | 4 | 1,767 |
| F323800F000S | 38 | 380 | 230 | 4 | 1,808 |
| F323900F000S | 39 | 350 | 230 | 4 | 1,972 |
| F324000F000S | 40 | 380 | 230 | 4 | 2,043 |
